RD TC64 Type-C color LCD USB Voltmeter ammeter voltage current meter multimeter battery PD charge power bank USB Tester

Technical Parameter:
Product Model:TC64 Display screen:0.96 Inch color LCD display
Voltage measurement range:3.70-30.00V Voltage measurement resolution:0.01V
Current measurement range:0-4.000A Current measurement resolution:0.001A
Capacity accumulation rannge:0-99999mAh Voltage measurement accuracy:±(0.8％+4digits at 25℃)
Energy sccumulation range:0-99999mWh 999.99Wh Current measurement accuracy: ±(1％+4 digits, at 25℃)
Load impedance range: 1Ω-9999.9Ω Power measurement range:0-120W
Temperature range:-0℃~80℃/32℉~176℉ Temperature measurement error:±3℃/±6℉
Working temperature range: 0~45℃/32℉~113℉ Product size:50mmx19mmx9mm Refresh rate:2Hz Product weight:7g( With packaging 14g)
Quick charge recognition mode: QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG
Note:

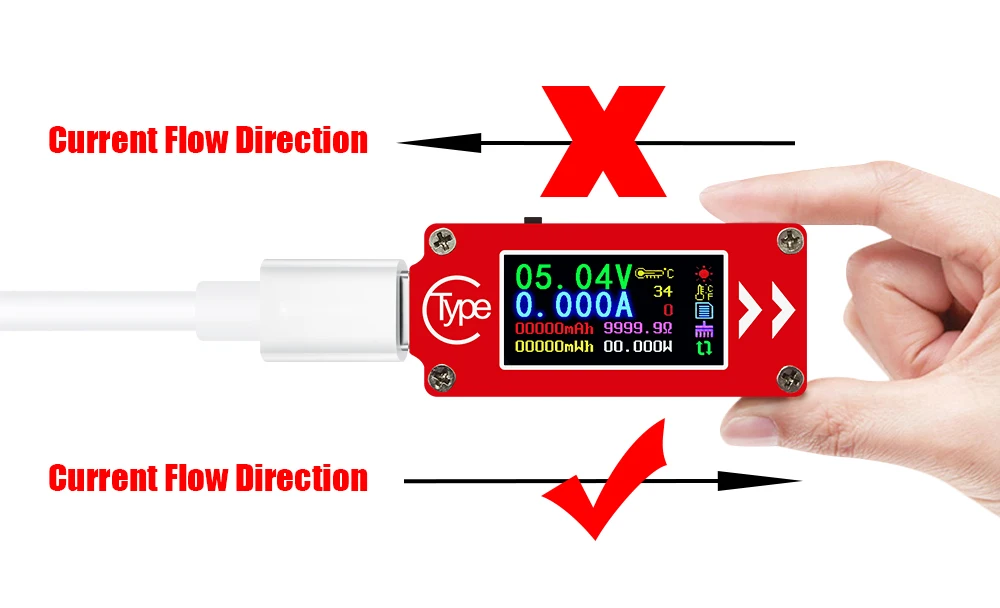

1, The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
2, if you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..
2, Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)
3, Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
|
